Need pictures, redoing bimini mounts

[georgia_dawgs08]

Hey guys, anybody out there with a bimini top that is Mounted on a Skylon Swoop tower I need some help. I need to refabricate mine to mount to the tower and not to the windshield frame, I can tell you from experience that this can cause lots of trouble. I really need as many pictures as anyone can take of the mounts, angles, and harware that I would need to make this happen. Thanks for any of your help in advance, Jason

[Ronnie]

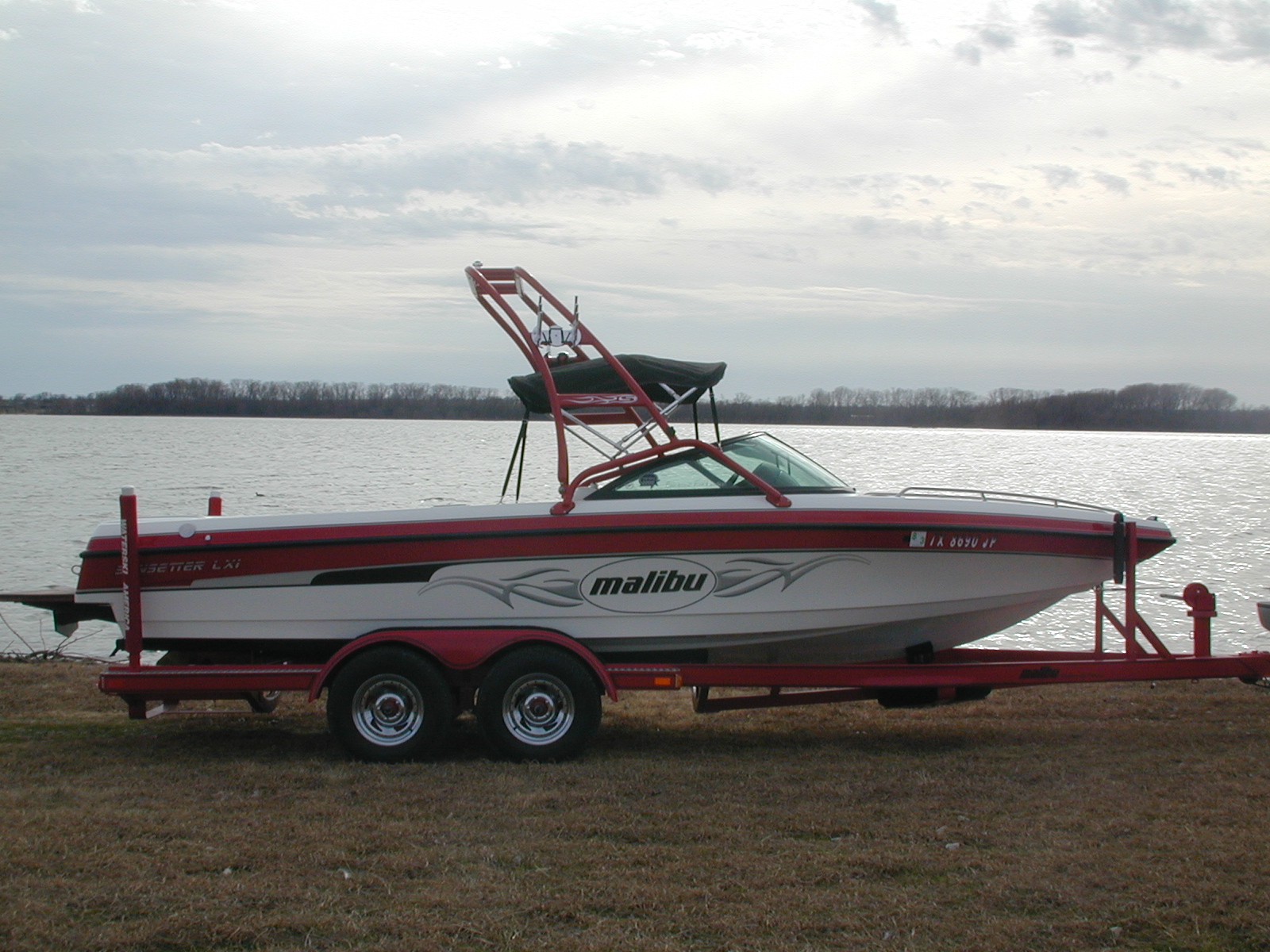

I might have more if this one doesn't help you.

[georgia_dawgs08]

I might have more if this one doesn't help you.

That is the first one that I've seen done that way I think, it looks like your's has four different poles that run through the fabric, I think that the one I have only has three.

[Ronnie]

The best I recall ( it's been since '01), there were three tubes across the top. One in the front, one in the rear and one across at a bit forward of the middle.

[georgia_dawgs08]

The best I recall ( it's been since '01), there were three tubes across the top. One in the front, one in the rear and one across at a bit forward of the middle.

All the ones that I have seen do not have the straps on them, does anybody have any closeup pictures of the biminis that the poles go directly to the tower, I've seen them all over the place just can't tell how exactly they are fixed to the tower and how they are angled etc. Thanks
