Extra ballast in a 2010 VLX wakesetter


  • Please log in to reply
21 replies to this topic

#1
GRGKng

GRGKng
  • Boot Lube Applier
  • 79 posts
  • Joined July 10, 2010
  • Boat: 2010 Wakesetter VLX
Hey guys,

Just got my boat not too long ago, and I'd like to add extra ballast for wakesurfing. I've seen many people adding 750lb-1100 lbs per corner (if I am correct), and am wondering what the downsides and upsides are? MY dealer told me that they recommend no more than 550lbs perside bringing the total amount to 750lbs perside, this way you dont crack the hull or anything like that. They are wanting to charge 1600, to get both bags (fly high) plumbed in. Also they said there is no way for the extra ballast to work progressively with the display when it shows how full the ballast is, is that correct? Any advice would be great, thanks.

#2
Malibudude

Malibudude
  • Administrator
  • 14,268 posts
  • Joined March 21, 2005
  • Location: Norcal
  • Boat: Silver Edition VLX

Hey guys,

Just got my boat not too long ago, and I'd like to add extra ballast for wakesurfing. I've seen many people adding 750lb-1100 lbs per corner (if I am correct), and am wondering what the downsides and upsides are? MY dealer told me that they recommend no more than 550lbs perside bringing the total amount to 750lbs perside, this way you dont crack the hull or anything like that. They are wanting to charge 1600, to get both bags (fly high) plumbed in. Also they said there is no way for the extra ballast to work progressively with the display when it shows how full the ballast is, is that correct? Any advice would be great, thanks.


Ah, that comment is ludicrous.... The pros have been sackin' out their rides for years well beyond the stock weights, to date none have "cracked" the hull. Put a 750lbs in the rear locker and two 400's or another 750lbs in the main cabin area and about 400lbs up front all ballast full except opposite surf side and wedge bumped up one. I don't believe there is a way to update the Malivue, just add a switch to fill either side instead. I do recommend filling the rear ballast first before filling the 750lbs on top however even if it's not a closed system.

#3
GRGKng

GRGKng
  • Boot Lube Applier
  • 79 posts
  • Joined July 10, 2010
  • Boat: 2010 Wakesetter VLX
So, would you recommend the Wake makers 750lbs fat sac per side that integrates it into the stock system? or what do you recommend for sacs to get? Also, is this stuff hard to install, for some one that is mechanically... not good. I assume the dealer would install something else other than what they offer?

#4
GRGKng

GRGKng
  • Boot Lube Applier
  • 79 posts
  • Joined July 10, 2010
  • Boat: 2010 Wakesetter VLX
Talked to my dealer about installing Wake Makers 750lbs Piggy back system, and this was teh response I got, can anyone shed light or confirm this response?

Thanks in advance.

"We have tried this system and it does not work. The weight gets too much and it forces the water past the drain pump before the bags get full."

#5
Tyger

Tyger
  • Spotter Extraordinaire
  • 471 posts
  • Joined June 07, 2010
  • Location: Cypress, TX
  • Boat: '13 24 MXZ
Boat House View Boat House

Hey guys,

Just got my boat not too long ago, and I'd like to add extra ballast for wakesurfing. I've seen many people adding 750lb-1100 lbs per corner (if I am correct), and am wondering what the downsides and upsides are? MY dealer told me that they recommend no more than 550lbs perside bringing the total amount to 750lbs perside, this way you dont crack the hull or anything like that. They are wanting to charge 1600, to get both bags (fly high) plumbed in. Also they said there is no way for the extra ballast to work progressively with the display when it shows how full the ballast is, is that correct? Any advice would be great, thanks.


You want the weight on one side for surfing. If you have goofy side riders (behind the driver), then you will need to weight down one side or the other, but not both at the same time. If you can get away with only one side, then you only need bag(s) on one side. I've seen boats that put out a very surfable wave on both sides, but I don't think my 23 will do it. With a lot of experimentation you may ge that on a VLX. Otherwise just focus on one side at a time.

Before you pay to have stuff plumbed in, I would play around with the wake and see. You can buy 750s reasonable or look on ebay/craigslist and figure out what you want first, then have it plumbed in. That price doesn't seem that bad, but you don't want to be back for more bags or a different setup if you aren't happy with it.

So, would you recommend the Wake makers 750lbs fat sac per side that integrates it into the stock system? or what do you recommend for sacs to get? Also, is this stuff hard to install, for some one that is mechanically... not good. I assume the dealer would install something else other than what they offer?


Having sacs plumbed in is definitely a lot more convenient. The system isn't that complex to install, but there are some hydrolic and electrical issues to consider. If you are putting ports through the hull in or out, you have to be super careful they are water tight. You don't want to swamp your boat because you did it yourself.

Talked to my dealer about installing Wake Makers 750lbs Piggy back system, and this was teh response I got, can anyone shed light or confirm this response?

Thanks in advance.

"We have tried this system and it does not work. The weight gets too much and it forces the water past the drain pump before the bags get full."


I have heard that some pump setups can have that problem, so they are not off base. Hopefully some of the other ballast experts can chime in on that specific setup.

#6
GRGKng

GRGKng
  • Boot Lube Applier
  • 79 posts
  • Joined July 10, 2010
  • Boat: 2010 Wakesetter VLX
Thanks for the response.

Quick question I'm regular, I usually surf with the wake behind the opposite side of the driver, is that correct? or should my wake be behind the driver?

Would you recommend I go with the Wake MAkers kit then (http://www.wakemaker...ast-system.html) or should I just have the dealer plumb in a bag bigger than 550 (the max they'll plumb)?

thanks.

#7
btbt

btbt
  • Ballast Buddy
  • 5 posts
  • Joined April 14, 2010
My dealer recommends the wakemakers piggyback system for my 2010 VLX. I spoke to the guy at wakemakers the other day and he said the 750 sacks plumbed in with their piggy back works great on 2010 malibus. I have been running 750 fly high sacks with a separate pump I throw over the side of the boat with great success. You can't quite fill them full though because of the shape of the locker. We get plenty of weight for surfing. I'm going to plumb them in this weekend with the piggy back system and can let you know if it pushed water out past the drain pump.

#8
GRGKng

GRGKng
  • Boot Lube Applier
  • 79 posts
  • Joined July 10, 2010
  • Boat: 2010 Wakesetter VLX
Thanks let me know! Also, would it be better to get the piggyback system, or to get a 750lb bag and plumb it in with its own independent pump and drain?

Thanks.

#9
Woodsprinter

Woodsprinter
  • A Decent Third
  • 328 posts
  • Joined September 01, 2006
  • Location: Fortville, IN
  • Boat: Looking for VLX or LSV
I will install 750# piggyback this evening. The instruction says 45 minute installation. Wakemakers said it is cheap solution (only $209 each side)and works very good.

Edited by Woodsprinter, July 14, 2010 - 08:25 AM.


#10
GRGKng

GRGKng
  • Boot Lube Applier
  • 79 posts
  • Joined July 10, 2010
  • Boat: 2010 Wakesetter VLX
Let me know how the install goes, as I am mechanically horribly. Thanks


Well pulled the trigger, and ordered two of em, let me know how the install and use goes when you get a chance!

Edited by Gl4662, July 14, 2010 - 01:07 PM.


#11
Woodsprinter

Woodsprinter
  • A Decent Third
  • 328 posts
  • Joined September 01, 2006
  • Location: Fortville, IN
  • Boat: Looking for VLX or LSV
I installed last night. It wasn't bad. The instruction manual with pictures are helpful. I got little confused with where the hoses go due to trick overflow concept. After I called wakermakers, evrything is easy. All you need are the screwdriver (phillip) for access panels and ratchet/socket for hose clamp. that is it.. :yahoo: Hold.. I haven't tested it yet. :innocent: Will try this weekend.. :woot:

#12
GRGKng

GRGKng
  • Boot Lube Applier
  • 79 posts
  • Joined July 10, 2010
  • Boat: 2010 Wakesetter VLX
any news!!

#13
BIG JAY

BIG JAY
  • Boot Lube Applier
  • 90 posts
  • Joined March 08, 2010
  • Boat: 2011 Malibu 247
some of the problems you will run into is time. if you doing a piggy back system off the stock fill pumps and drain its going to take longr. one hole! and yes running some pumps hooked to the bag or close will cause the bag to self drain from the amount of pressure its putting on the pump, sometime blowing it apart. you can install a valve to prevent this from happening OR just go with a johnson or jabsco pump. addind thru hull pick ups and drains. many dealers dont like to do installs. find someone to do it on the side or who loves to do them for a living. ALSO you really can sac these boats out a bunch! just make sure with all the weight in the boat you still hit top RPMs of 5,000 - 5,200. also watch gas fuel vent if you get to turned side ways or under water you can suck water into tank and that would be bad news. This is an install i did a few weeks ago. based on a 4 pump system filling 3 custom surf sacs.

http://www.themalibu..._1

#14
GRGKng

GRGKng
  • Boot Lube Applier
  • 79 posts
  • Joined July 10, 2010
  • Boat: 2010 Wakesetter VLX
Are the jabscio pumps better than the stock ones in the malibu? The dealer wants to use the stock pumps for the plumbed unit. I wish there was a custom installer here in mn, but i dont think there is!

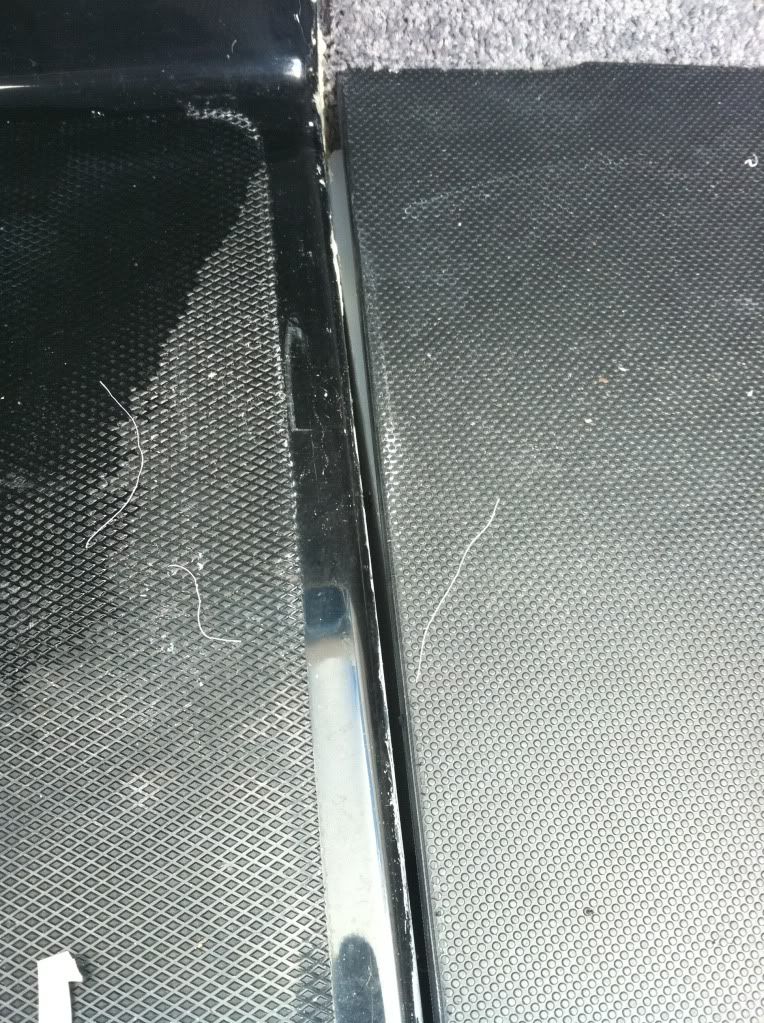

Just pulled out my 400lb fat sac, and saw this:

Posted Image

is that normal to have a gap there? its not really as flush as the passenger side?

Thanks in advance.

Edited by Gl4662, July 18, 2010 - 12:41 PM.


#15
Woodsprinter

Woodsprinter
  • A Decent Third
  • 328 posts
  • Joined September 01, 2006
  • Location: Fortville, IN
  • Boat: Looking for VLX or LSV

any news!!

My last weekend plan changed.. I will test it this weekend hopefully..

#16
Woodsprinter

Woodsprinter
  • A Decent Third
  • 328 posts
  • Joined September 01, 2006
  • Location: Fortville, IN
  • Boat: Looking for VLX or LSV
I tested it. It works. The water will enter sac first (1/4 of sac) then overfill into hard tank and when hard tank is filled up fully, the sac will be filled up. It takes time to fill up both. One big con about piggy back is it takes forever to drain the sac! The hard tank will drain fast but it takes time for the bag drain into hard tank. I am wondering if the tsumani pump (manual) will do faster. I also don't like the idea of having sac 1/4 fill up to get just hard tank full only that I want..

Edited by Woodsprinter, July 26, 2010 - 06:08 AM.


#17
RayRay

RayRay
  • Trailer Polisher
  • 133 posts
  • Joined March 22, 2009
  • Location: Forest Lake, MN
  • Boat: 2013 VLX

Are the jabscio pumps better than the stock ones in the malibu? The dealer wants to use the stock pumps for the plumbed unit. I wish there was a custom installer here in mn, but i dont think there is!

Just pulled out my 400lb fat sac, and saw this:



If you do find anyone in MN that does custom installs let me know, I have an 09 VLX and would love to get everything plumbed in for surfing.

#18
Greg_S

Greg_S
  • Beyond Help
  • 866 posts
  • Joined April 23, 2005
  • Location: Carlsbad, CA
  • Boat: 2005 VLX
Boat House View Boat House

I tested it. It works. The water will enter sac first (1/4 of sac) then overfill into hard tank and when hard tank is filled up fully, the sac will be filled up. It takes time to fill up both. One big con about piggy back is it takes forever to drain the sac! The hard tank will drain fast but it takes time for the bag drain into hard tank. I am wondering if the tsumani pump (manual) will do faster. I also don't like the idea of having sac 1/4 fill up to get just hard tank full only that I want..



My tsunami pump drains my 750# sac pretty quick.

#19
DC05

DC05
  • Ballast Buddy
  • 11 posts
  • Joined March 05, 2009
  • Location: Kirkland WA
  • Boat: 2005 Wakesetter 23LSV
I did the 750# Wake maker Piggy back system in my '05 last week and tried it this past weekend and have the same experience as Woodsprinter. Easy to install, once I understood the concept that the stock pump would fill through the bag and then into the hard tank. Draining does take a long time and I think there is still water in the bag.

If there was some way to angle the bag, so the rear part of the bag was slightly higher, I think it would improve getting all the water out. I'll have to kick some ideas around.

#20
Woodsprinter

Woodsprinter
  • A Decent Third
  • 328 posts
  • Joined September 01, 2006
  • Location: Fortville, IN
  • Boat: Looking for VLX or LSV

My tsunami pump drains my 750# sac pretty quick.


Which input on sac to drain? bottom or top? How do we prevent the spill when plug the pump? check valve? I checked fatsac.com but can't figure on how to drain without spill the water?
